Overview - Bumper Cover, AUDI A6/ALLROAD/S6, Through My 2014
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

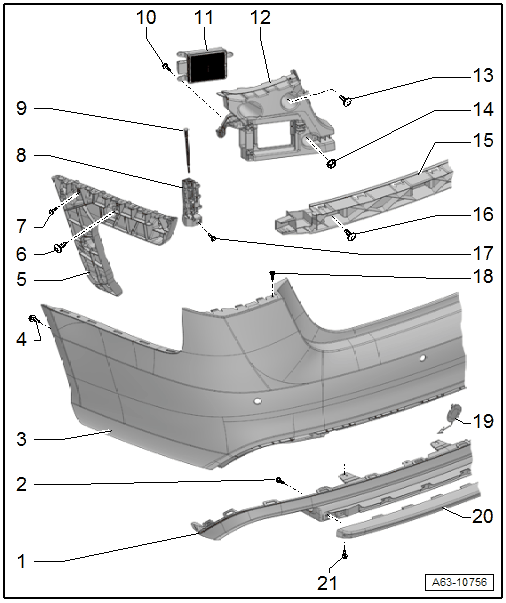

- Bumper Cover Lower Section
- There are different versions.
- Removing and Installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
- Bolt
- 2.2 Nm
- Quantity: 8
- Rear Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 2.1 Nm
- Depending on vehicle equipment
- Side Mount
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Fig 5.
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Fig 5.
- Upper Mount
- For the bumper cover
- Removing and Installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Locating Pin
- For attaching the rear bumper cover to the upper mount
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Lane Change Assistance Control Module
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- / -J770-, REMOVING AND INSTALLING .
- Outer Mount
- For the bumper cover
- There are different versions.
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, AUDI A6/S6 .
- Bolt
- Sedan, quantity: 3
- Avant, quantity: 2
- Tightening sequence. Refer to Fig 2.
- Bolt/Nut
- Sedan: bolt
- Avant: nut
- Tightening sequence. Refer to Fig 2.
- Mount in the Center
- For the bumper cover
- There are different versions.
- Removing and Installing. Refer to BUMPER COVER CENTER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Tightening sequence. Refer to Fig 4.
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Fig 3.
- Bolt
- 2.5 Nm
- Cover
- For the towing eye
- Trim Molding
- For the bumper cover lower section
- Equipped on some models
- Removing and Installing. Refer to TRIM MOLDING FOR BUMPER LOWER SECTION, REMOVING AND INSTALLING .
- Bolt
- 1.7 Nm
- Vehicles without a trailer hitch, quantity: 3
- Vehicles with a trailer hitch, quantity: 2
-- Tighten the bolts/nuts in the specified sequence.
| Bolt/Nut | Torque |
|---|---|
| Bolt -1- | 3 Nm |
| Bolt -2- | 3 Nm |
| Bolt -3- | 3 Nm |
| Nut -3- | 2.2 Nm |
-- Tighten the screws to 1.5 Nm in the sequence -1 to 2-.
-- Tighten the bolts to 3 Nm in the sequence -1 to 4-.
NOTE:
There are different versions of the bolts.
-- Tighten the bolts in the specified sequence.
| Bolt | Torque |
|---|---|
| -1- | 1.5 Nm |
| -2- | 1.5 Nm |
| -3- | 3 Nm |
| -4- | 3 Nm |
