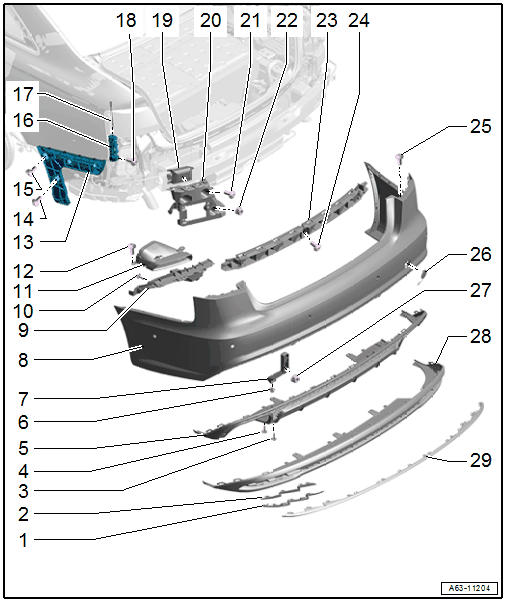

Overview - Bumper Cover, AUDI A6 From My 2015
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Trim
- Lower
- e-tron only
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, E-TRON .
- Trim
- Upper
- e-tron only
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, E-TRON .
- Bolt
- 4.5 Nm
- Quantity: 2
- Bolt
- 1.7 Nm
- Quantity: 2
- Bumper Cover Lower Section
- There are different versions.
- Removing and Installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
- Adjuster
- Rear Mount
- For the bumper cover
- Removing and Installing. Refer to REAR BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Rear Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, VEHICLES FROM MY 2015 .
- Mount
- For the tail pipe trim
- Removing and Installing. Refer to TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING FROM MY 2015 .
- Bolt
- 2 Nm
- Quantity: 4
- Tail Pipe Trim
- Removing and Installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING FROM MY 2015 .
- Bolt
- 2 Nm
- Quantity: 2
- Side Mount
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Figure.
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Figure.
- Upper Mount
- For the bumper cover
- Removing and Installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Locating Pin
- For attaching the rear bumper cover to the upper mount
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Figure.
- Lane Change Assistance Control Module
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- / -J770-, REMOVING AND INSTALLING .
- Outer Mount
- For the bumper cover
- There are different versions.
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, AUDI A6/S6 .
- Bolt
- Sedan, quantity: 3
- Avant, quantity: 2
- Tightening sequence. Refer to Figure.
- Bolt/Nut
- Sedan: bolt
- Avant: nut
- Tightening sequence. Refer to Figure.
- Mount in the Center
- For the bumper cover
- There are different versions.
- Removing and Installing. Refer to BUMPER COVER CENTER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Tightening sequence. Refer to Fig 2.
- Bolt
- 2.5 Nm
- Cover
- For the towing eye
- Nut
- 1.5 Nm
- Quantity: 2
- Bumper Cover Lower Section
- E-tron only
- Removing and Installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
- Trim Molding
- e-tron only
- Removing and Installing. Refer to TRIM MOLDING FOR BUMPER LOWER SECTION, REMOVING AND INSTALLING, E-TRON .
-- Tighten the bolts to 3 Nm in the sequence -1 to 4-.
