Impact Member, Removing And Installing, Vehicles Without Trailer Hitch, AUDI A6/ALLROAD/S6: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
-- If equipped, remove the spare tire well trim. Refer to SPARE WHEEL WELL TRIM, REMOVING AND INSTALLING .

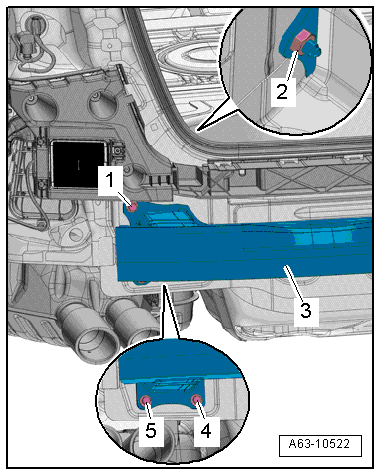

-- Remove the nut -2- and bolts -1, 4 and 5-.
-- Remove the impact member -3-.
