Impact Member, Removing And Installing, AUDI RS6: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the molded foam part. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
-- Remove the bumper cover outer mount. Refer to BUMPER COVER OUTER MOUNT, REMOVING AND INSTALLING, AUDI RS6 .

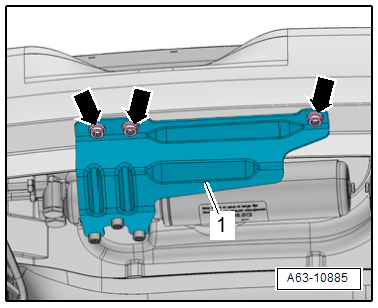

-- Remove the bolts -arrows-.
-- Tie up the bracket -1- with the central valve to the side.
-- Remove the spare tire well trim. Refer to SPARE WHEEL WELL TRIM, REMOVING AND INSTALLING .

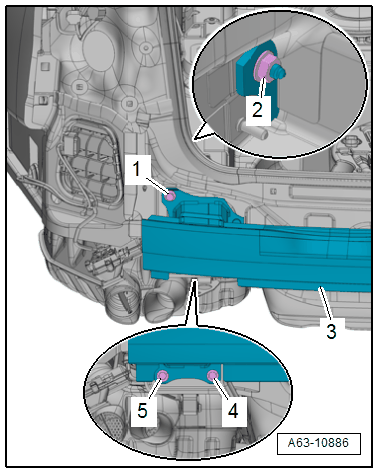

-- Remove the nut -2- and bolts -1, 4 and 5-.
-- Remove the impact member -3-.
