Bumper Cover, Removing And Installing, Vehicles Through My 2014: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

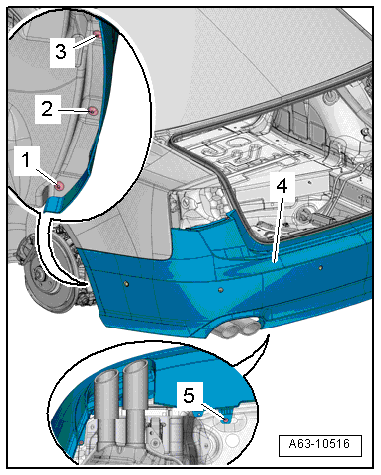

-- Remove the bolts -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1, 2 and 3- on the bumper cover side plates -4-.

-- Remove the cover in the luggage compartment side trim panel.

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles with a trailer hitch: Remove the cable mount. The cable remains installed in the mount. Refer to CABLE MOUNT, REMOVING AND INSTALLING .

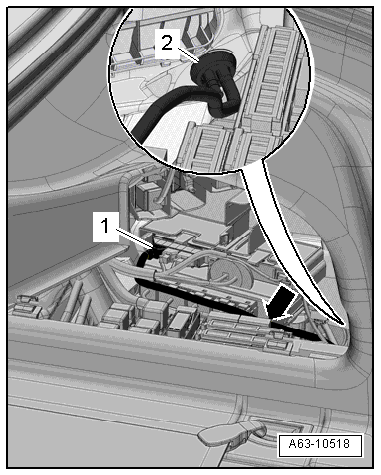

-- If equipped, cut the cable tie and disconnect the connector -1- from the Parking Aid Control Module -J446- and free up the wiring harness on the bracket for the control module -arrow-.

-- If equipped disconnect the connector for the Rear Lid Opener Control Module -J938-.

-- Press the grommet -2- outward.

-- Remove the outer tail lamps. Refer to TAIL LAMP, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

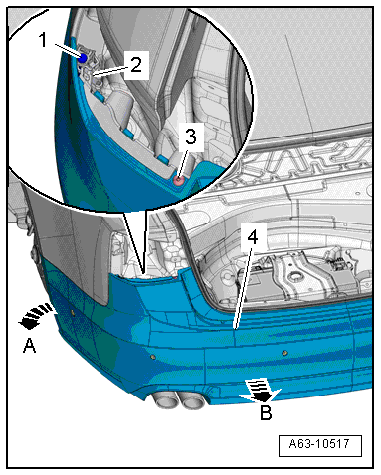

-- Remove the bolt -3-.

-- Remove the locating pin -1- upward and open the flap -2-.

-- Disengage the retainers on the side panel toward the outside -arrow A-.

-- Pull the center of the bumper cover -4- to the rear out of the locking mechanism -arrow B-.

-- Guide the wiring harness out through the opening in the body, if equipped.

-- Remove the bumper cover and lay it on a soft surface.
