Bumper Cover, Removing And Installing, Vehicles From My 2015: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

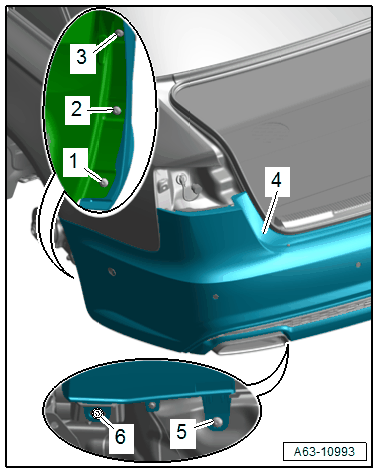

-- Remove the bolts -5 and 6-.
-- Remove the bolts -1, 2 and 3- on the bumper cover side plates -4-.
-- Remove the cover in the luggage compartment side trim panel.

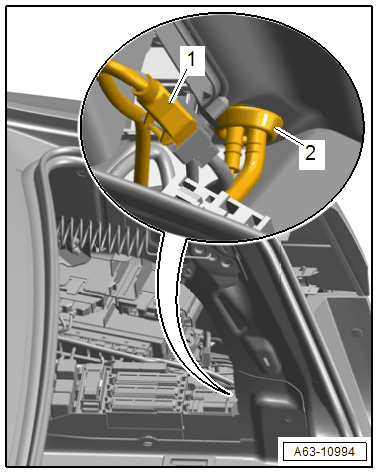

-- Disconnect the connector -1-.
-- Press the grommet -2- outward.
-- Remove the outer tail lamps. Refer to TAIL LAMP, REMOVING AND INSTALLING .

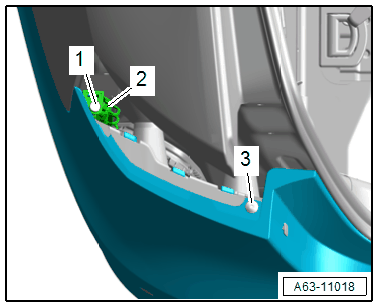

-- Remove the bolt -3-.
-- Remove the locating pin -1- upward and open the flap -2-.

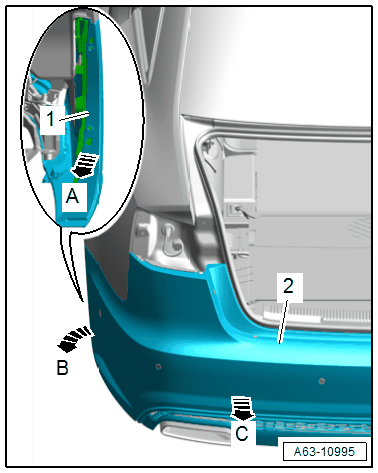

-- Release the retaining strip -1- sideways from the mount -arrow A.-
-- Disengage the retainers on the side panel toward the outside -arrow B-.
-- Pull the center of the bumper cover -2- to the rear out of the locking mechanism -arrow C-.
-- Guide out the wiring harness from the body guide.
-- Remove the bumper cover and lay it on a soft surface.
