Tail Pipe Trim Mount, Removing And Installing, AUDI RS6: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .

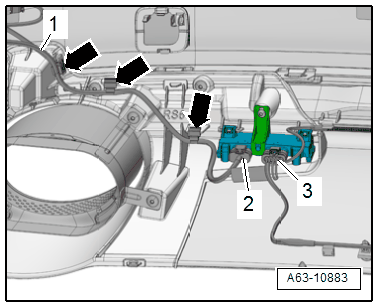

-- Right: for vehicles with an automatic rear lid opener, disconnect connectors -2 and 3-

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -1-.

-- Remove the clips -arrows- from the guide with a screwdriver.

Courtesy of AUDI OF AMERICA, LLC

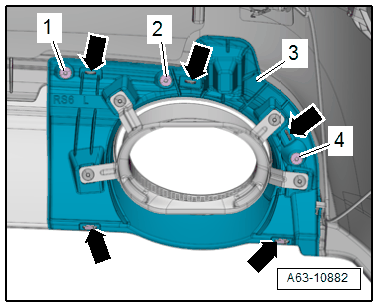

-- Remove the bolts -1, 2, 4-.

-- Remove the mount -3- from the bumper cover.
