Molded Foam Part, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .

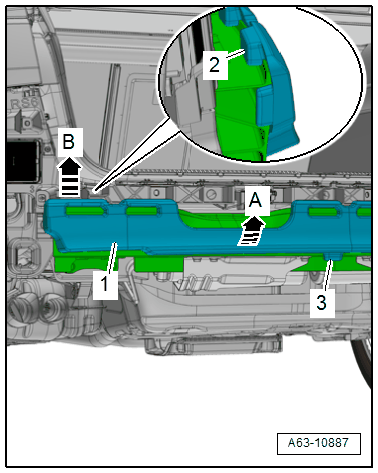

-- Release the lower retainer -3- in the direction of -arrow A- and remove molded foam piece -1- upward -arrow B-, while doing this the upper retaining tabs -2- release.

GWWA63-10887Courtesy of AUDI OF AMERICA, LLC
