Bumper Cover Trim, Removing And Installing, E-Tron: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the trim molding for the lower section for the bumper cover. Refer to TRIM MOLDING FOR BUMPER LOWER SECTION, REMOVING AND INSTALLING, E-TRON .

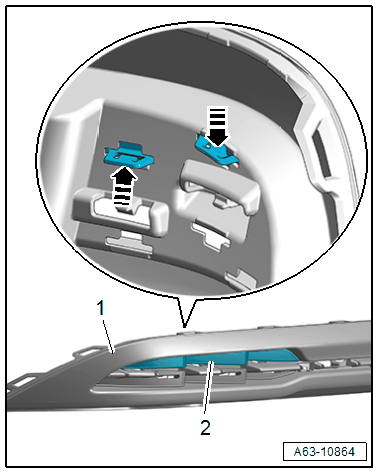

-- Release the catches -arrows- and remove the upper trim -2- from the bumper cover lower section -1-.

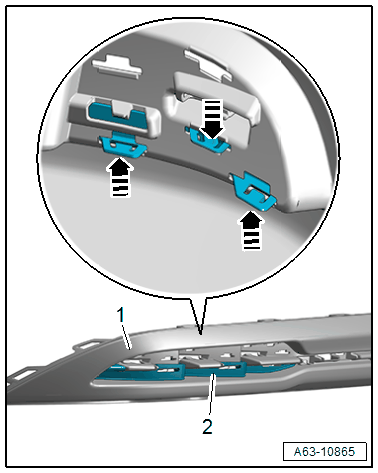

-- Release the catches -arrows- and remove the lower trim -1- from the bumper cover lower section -2-.
