Overview - Bumper Cover, Lock Carrier Cover End Panel, AUDI RS6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

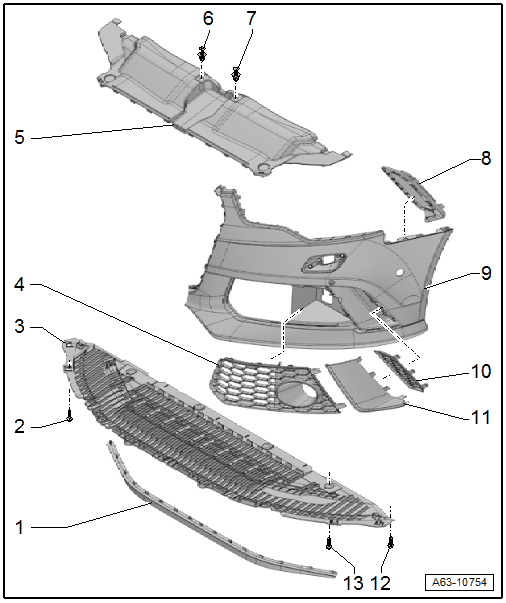

Fig 1: Exploded View Of Bumper Cover, Audi RS6

Courtesy of AUDI OF AMERICA, LLC

Spoiler Lip
- Removing and Installing. Refer to SPOILER LIP, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 7
Bumper Cover End Plate
- Removing and Installing. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, AUDI RS6 .
Inner Air Intake Grille
- There are different versions.
- Removing and Installing. Refer to INNER AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS6 .
Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Expanding Clip
Expanding Clip
Mount
- For the exterior air intake grille
Bumper Cover
Exterior Air Intake Grille
- Removing and Installing. Refer to OUTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS6 .
Trim
- For the exterior air intake grille
- Removing and Installing. Refer to OUTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS6 .
Bolt
- 2.1 Nm
- Quantity: 2
Bolt
- 5 Nm
- Quantity: 4
