Overview - Bumper Cover, AUDI RS6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

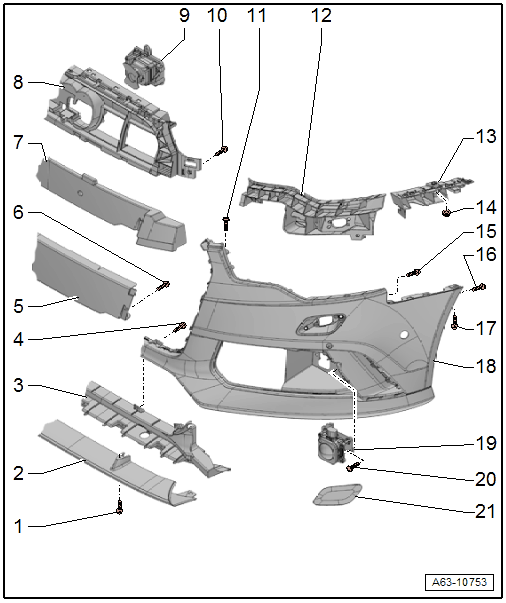

Fig 1: Exploded View Of Bumper Cover, Audi RS6

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2 Nm
- Quantity: 2
Spoiler Lower Section
- Removing and Installing. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING .
Mount
- For the spoiler lower section
- Removing and Installing. Refer to SPOILER LOWER SECTION MOUNT, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 4
Mount
- For the molded foam part
- Removing and Installing. Refer to MOLDED FOAM PIECE MOUNT, REMOVING AND INSTALLING, AUDI RS6 .
Bolt
- 1.5 Nm
- Quantity: 2
Molded Foam Part
- Removing and Installing. Refer to MOLDED FOAM PIECE, REMOVING AND INSTALLING, AUDI RS6 .
Center Reinforcement Brace
- Removing and Installing. Refer to CENTER REINFORCEMENT BRACE, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
Mount
- For the Night Vision System Camera -R212-
- Removing and Installing. Refer to Night Vision System Camera -R212- MOUNT, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
Bolt
- 1.5 Nm
- Quantity: 14
Bolt
- 3 Nm
- Quantity: 2
Side Reinforcement Brace
- Removing and Installing. Refer to SIDE REINFORCEMENT BRACE, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
Front Bumper Cover Mount
- Removing and Installing. Refer to FRONT BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Nut
- 4 Nm
- Quantity: 3
Bolt
- 4 Nm
Bolt
- 1.5 Nm
Bolt
- 1.5 Nm
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Distance Regulation Control Module (ACC)
- Removing and Installing. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - ADAPTIVE CRUISE CONTROL (ACC) .
Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
