Overview - Bumper Cover, AUDI A6 From My 2015

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

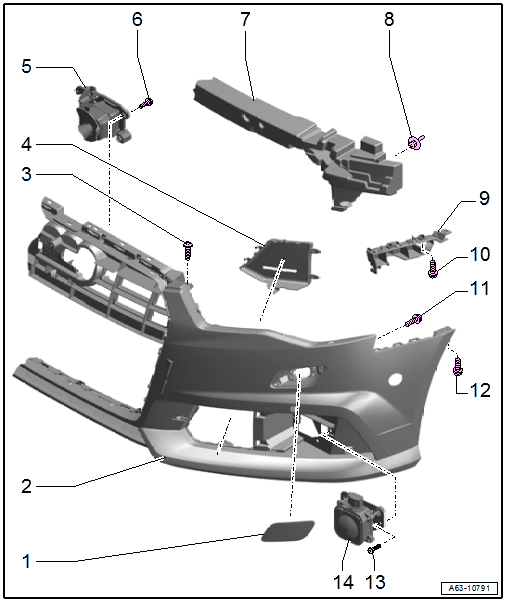

Fig 1: Exploded View Of Bumper Cover, Audi A6 from MY 2015
GWWA63-10791Courtesy of AUDI OF AMERICA, LLC
  1. Washer Nozzle Cover
  2. Bumper Cover
  3. Bolt
    • 4 Nm
    • Quantity: 2
  4. Cover
    • For the air intake grille
    • Equipped on some models
  5. Mount
  6. Bolt
    • 6 Nm
    • Quantity: 4
  7. Molded Foam Part
  8. Clip
    • Quantity: 2
  9. Front Bumper Cover Mount
  10. Bolt
    • 4 Nm
    • Quantity: 2
  11. Bolt
    • 4 Nm
  12. Bolt
    • 1.5 Nm
  13. Bolt
  14. Distance Regulation Control Module (ACC)
