Overview - Bumper Cover, ALLROAD

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Only the differences from the standard bumper are described.

The removal and installation of the bumper cover is performed like that of the standard bumper.

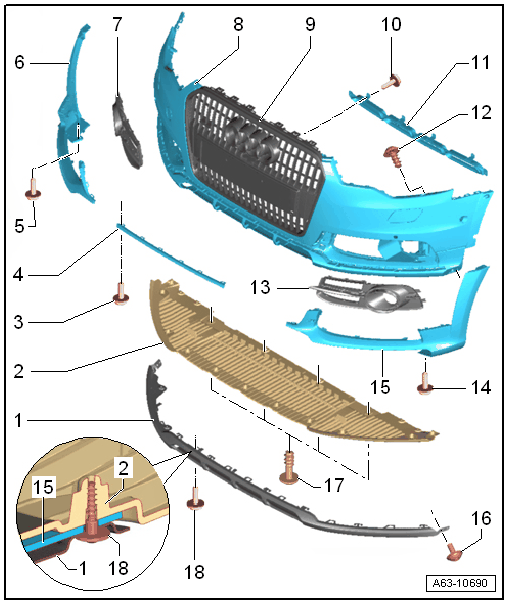

Fig 1: Exploded View Of Front Bumper Cover, Allroad

Courtesy of AUDI OF AMERICA, LLC

Impact Protection
- The end plate -2- is removed.
  -- Remove the screws -16 and 18-.

  -- Unclip the clips on the inside one after the other and then pull off the impact protection.
End Panel
-- Turn the left-hand quick-release fasteners -17- to loosen them and then remove the screws -16 and 18-.

-- Remove the end plate to the rear.
Bolt
- 1.5 Nm
Connecting Piece
- Clipped into the bumper cover between the left and right spoilers.
Bolt
- 2 Nm
Right Spoiler
-- Can be replaced separately

-- Bumper cover removed.

-- Unclip the spoiler one clip after the other and then pull it off the bumper cover.
Right Air Intake Grille
-- The end plate -2- is removed.

-- Unclip in steps from the inside and pull it off.
Bumper Cover
- Removing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Radiator Grille
- Removing and Installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING, AUDI A6/ALLROAD/S6 THROUGH MY 2014 .
Bolt
- 1.5 Nm
Center Air Intake Grille
-- Remove the end plate.

-- Remove the screws -10- and remove the air intake grille.
Bolt
- 1.5 Nm
Left Air Intake Grille
-- The end plate -2- is removed.

-- Unclip in steps from the inside and pull it off.
Bolt
- 2 Nm
Left Spoiler
-- Can be replaced separately

-- Bumper cover removed.

-- Unclip the spoiler one clip after the other and then pull it off the bumper cover.
Bolt
- 1.5 Nm
Quick Release
- Open by turning counter-clockwise
- Quantity: 4
Bolt
- 1.5 Nm
