Connecting Brace, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

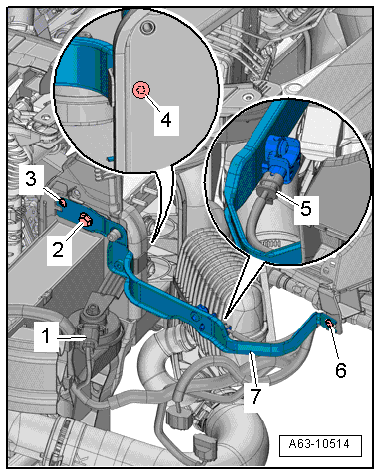

-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
-- Disconnect the connector -5- to the front airbag crash sensor. Pay attention to the Safety Precautions. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
-- Disconnect the connector -1- from the horn.
-- Remove the bolt -4- and the horn bracket.
-- Drill out the pop rivet head -3- and strike the rivet shaft out.
-- Loosen the bolt -6-, remove the bolt -2- and remove the connecting brace -7-.
