Outer Air Intake Grille, Removing And Installing, AUDI RS6: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

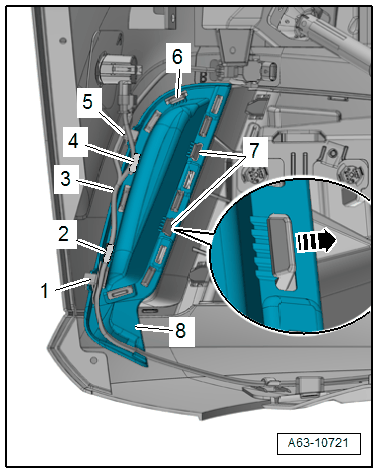

-- Press off the spiral clips -1 and 5- and free up the wiring harness -3-.
-- Press off the cover -8- from the bumper cover, to do this push the catches -2, 4, 6, and 7- slightly to the side -arrow-.

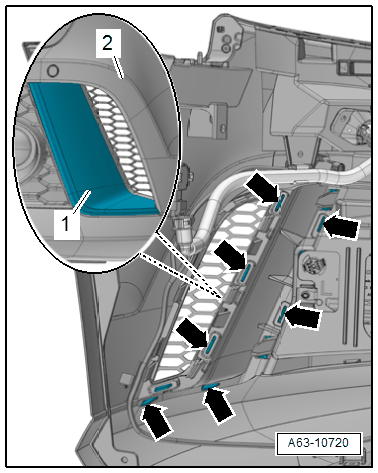

-- Carefully remove the clips -arrows- carefully from the guide tab with a screwdriver.
-- Remove the trim -1- from the bumper cover -2-.

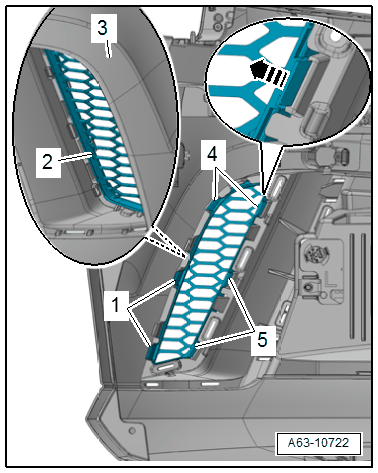

-- Release the catches -1, 4, and 5- -arrow- and the air intake grille -3- from the bumper cover -2-.
