Molded Foam Piece, Removing And Installing, AUDI RS6: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

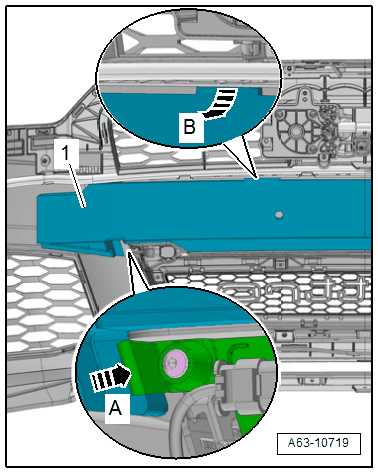

-- Release the retainer -arrow A- and disengage the molded foam part -1- by moving the top of the molded foam part in the direction of -arrow B-.

GWWA63-10719Courtesy of AUDI OF AMERICA, LLC

-- Remove the molded foam part.
