Molded Foam Part, Removing And Installing, AUDI A6/S6 Through My 2014: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

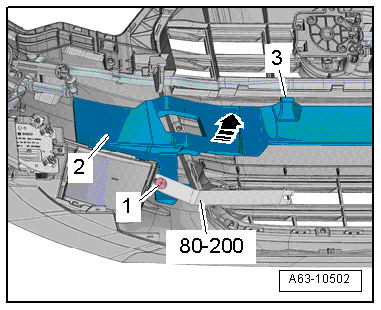

-- Pry off the clip -1- using the Pry Lever: 80-200
-- Move the molded foam piece -2- in direction of -arrow- and disengage the tabs -3-.
-- Remove the molded foam part.
