Molded Foam Part, Removing And Installing, AUDI A6 From My 2015: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

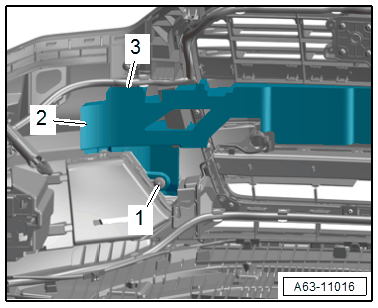

-- Pry off the clip -1- using the : 80-200

GWWA63-11016Courtesy of AUDI OF AMERICA, LLC

-- Guide the molded foam part -2- out of the bracket -3- and remove.
