Front Bumper Cover End Plate, Removing And Installing, AUDI RS6: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

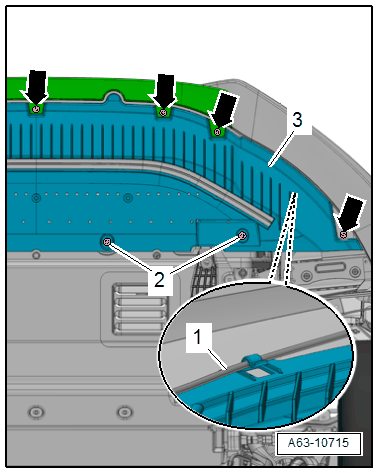

-- Remove the bolts -2- and -arrows-.

GWWA63-10715Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover end plate -3- toward the rear and free up the wiring harness -1-.

-- Remove the bumper cover end plate.
