Overview - Charge Air System, Vehicles With Turbocharger

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

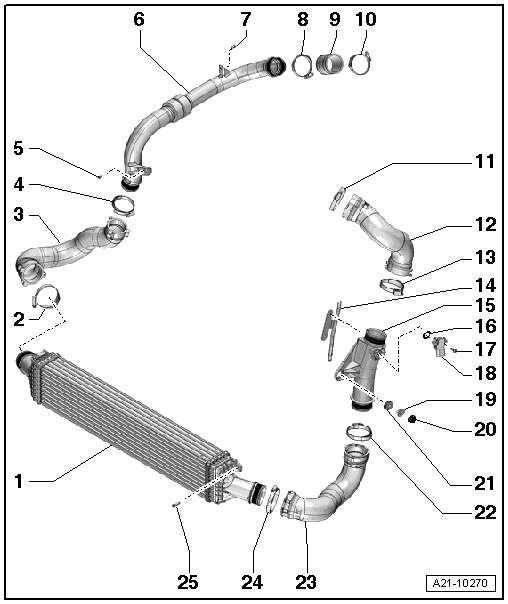

Fig 1: Charge Air System, Vehicles With Turbocharger Exploded View

Courtesy of AUDI OF AMERICA, LLC

Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING, VEHICLES WITH A TURBOCHARGER .
Hose Clamp
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Air Guide Hose
- To charge air cooler
- Must be free of oil and grease before installing
Hose Clamp
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Bolt
- 9 Nm
Right Air Guide Pipe
Bolt
- 9 Nm
Hose Clamp
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Air Guide Hose
- To turbocharger
- Must be free of oil and grease before installing
Hose Clamp
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Hose Clamp
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Air Guide Hose
- To the intake manifold
- Must be free of oil and grease before installing
Hose Clamp
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Not Installed
Left Air Guide Pipe
O-ring
- Always replace
Bolt
- 5 Nm
Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor -G42-
- Removing and installing. Refer to Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor -G42-, REMOVING AND INSTALLING .
Bushing
Nut
- 9 Nm
Rubber Grommet
Hose Clamp
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Air Guide Hose
- From charge air cooler
- Must be free of oil and grease before installing
Hose Clamp
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
Bolt
- 7 Nm
