Suppressor -C24-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the relay panel and fuse panel and move them to the side with the relay and fuse panels still connected. Refer to RELAY AND FUSE PANELS IN E-BOX, REMOVING AND INSTALLING .

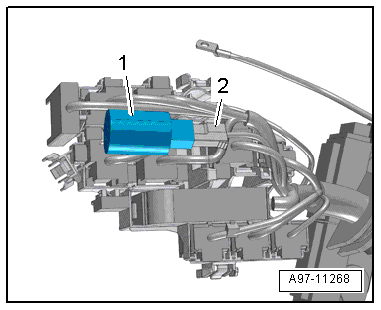

-- Disconnect the connector -2-.

GWWA97-11268Courtesy of AUDI OF AMERICA, LLC

-- Cut the cable tie, if equipped.

-- Remove the Suppressor -C24- -1-.
