Main Fuse Panel In Luggage Compartment, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Lift the luggage compartment floor covering by the handle and fold it forward.

-- Vehicles with high-voltage system - hybrid: remove the front outlet air guide for the electric vehicle battery. Refer to BATTERY COOLING MODULE . .

-- e-tron: open the lid in the luggage compartment floor.

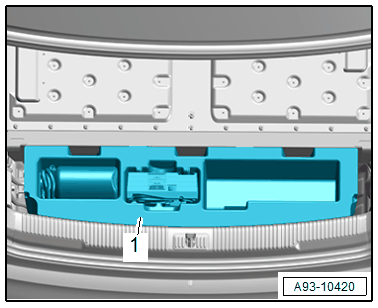

-- Remove the tool box -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover over the battery positive terminal.

Courtesy of AUDI OF AMERICA, LLC

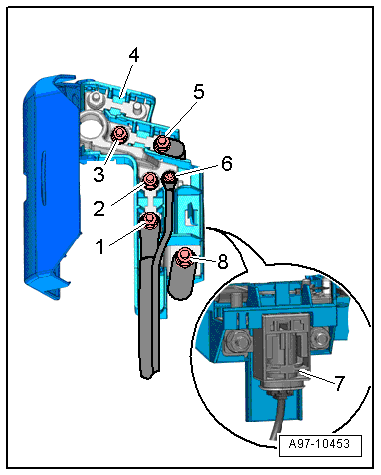

-- Loosen the nut -1- a few turns and disconnect the battery positive cable terminal and the main fuse panel from the battery terminal.

-- Release the retaining spring -3- and open the flap -2- above the main fuse panel in direction of -arrow-.

-- Disconnect the electrical wires -1, 5, 6 and 8-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -2 and 3-.

-- Remove the Battery Interrupt Igniter -N253- -7-. Refer to BATTERY INTERRUPT IGNITER, REMOVING AND INSTALLING . .

-- Remove the main fuse panel -4-.

NOTE:

Check the exact assignment in the current wiring diagram. Refer to the appropriate WIRING DIAGRAM.
