Fuse Panel F -SF- IN RIGHT LUGGAGE COMPARTMENT, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the ground cable from the Battery -A- when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the right luggage compartment trim panel.

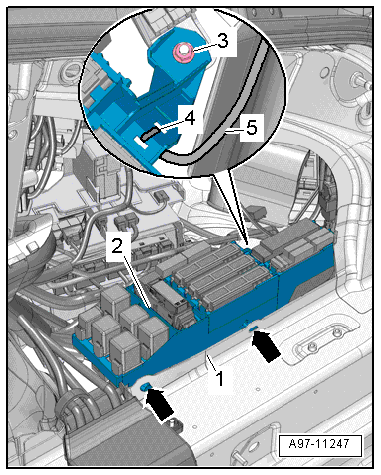

-- Remove the nut -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Cut the cable tie -4- and free up the wiring harness -5-.

-- Remove relay and Fuse Panel F -SF- -2- from the body -1- -arrows-.

-- Remove the mount for the 46-Pin Connector -T46b-. Refer to CAN CUT-OFF CONNECTOR MOUNT, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

-- Open the clip in direction of -arrow- and remove the fuse panel -2- toward the rear from the relay and Fuse Panel F -SF- -1-.

-- Release the retainers in direction of -arrows- and remove the relay panel -2- from the relay/fuse panel -1- to the rear.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the relay and Fuse Panel F -SF-.

NOTE:

Check the exact assignment in the current wiring diagram. Refer to the appropriate WIRING DIAGRAM.
