Component Location Overview - Relay Panel, Fuse Panel, E-Boxes, Luggage Compartment, AVANT
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

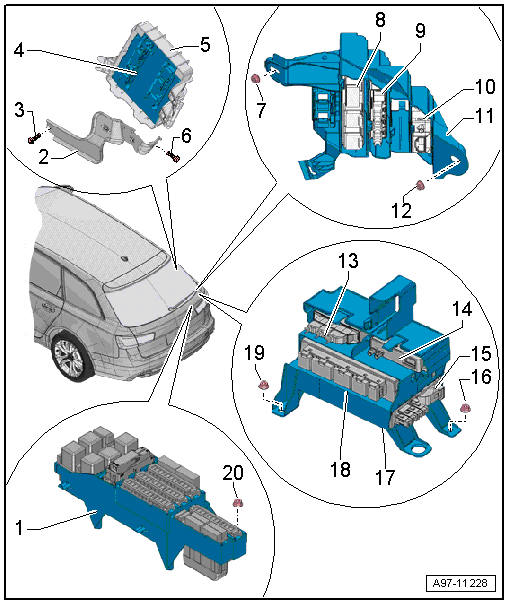

- Relay and Fuse Panel F -SF-
- Removing and installing. Refer to Fuse Panel F -SF- IN RIGHT LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
- With Fuse Panel F -SF-, Removing and installing. Refer to FUSE PANEL IN RIGHT LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
- With 46-Pin Connector -T46b-, Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONNECTORS .
- Bracket
- For the release lever for the remote release for the backrest
- Bolt
- Tightening specification: Refer to OVERVIEW - LOCKING MECHANISM .
- Comfort System Central Control Module -J393-
- Removing and installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING . .
- Frame
- For the control module
- Bolt
- Tightening specification: Refer to OVERVIEW - LOCKING MECHANISM .
- Nut
- 3 Nm
- Towing Recognition Control Module -J345-
- Overview. Refer to OVERVIEW - TRAILER HITCH SOCKET AND TOWING RECOGNITION CONTROL MODULE .
- Vehicle Positioning System Interface Control Module -J843-
- Removing and installing. Refer to VEHICLE POSITIONING SYSTEM INTERFACE CONTROL MODULE -J843-, REMOVING AND INSTALLING . .
- Parking Heater Radio Receiver -R64- (Canada Only)
- Removing and installing. Refer to Appropriate Service Information.
- Upper Frame
- For the control modules
- Nut
- 3 Nm
- Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Overview. Refer to OVERVIEW - PARKING AID .
- Cellular Telephone Amplifier -R86-
- Removing and installing. Refer to CELLULAR TELEPHONE AMPLIFIER -R86-, REMOVING AND INSTALLING, FROM MY 2015 . .
- Rearview Camera System Control Module -J772-
- Removing and installing. Refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772- REMOVING AND INSTALLING, FROM MY 2017 .
- Nut
- 3 Nm
- Lower Frame
- For the control modules
- Level Control System Control Module -J197-
- Removing and installing. Refer to LEVEL CONTROL SYSTEM CONTROL MODULE -J197-, REMOVING AND INSTALLING .
- Nut
- 3 Nm
- Nut
- 3 Nm
