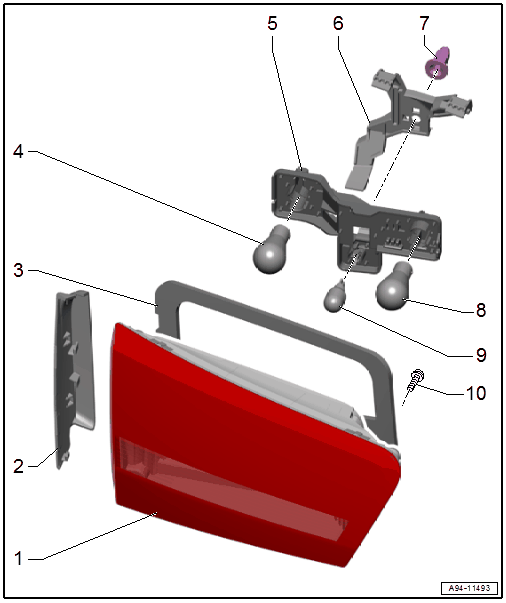

Overview - Rear Lid Tail Lamps, AVANT
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Inner Tail Lamps
- Removing and installing. Refer to REAR LID TAIL LAMPS, REMOVING AND INSTALLING, AVANT .
- Cover
- For the inner tail lamp
- Seal
- Always replace if damaged.
- Self-adhesive
- Brake and Tail Lamp Bulb 2
- Left Brake/Tail Lamp Bulb 2 -M58-, Right Brake/Tail Lamp Bulb 2 -M59-
- 12 V, 21 W
- Bulb, Replacing. Refer to INNER BULB SOCKET, REMOVING AND INSTALLING, REAR LID TAIL LAMP, AVANT .
- Bulb Socket
- Removing and installing. Refer to INNER BULB SOCKET, REMOVING AND INSTALLING, REAR LID TAIL LAMP, AVANT .
- Clamping Bracket
- For securing tail lamp assembly to the rear lid
- Nut
- 3.5 Nm
- Brake Lamp Bulb/Tail Lamp and Fog Lamp Bulb
- Left Brake Lamp Bulb -M9-, Right Brake Lamp Bulb -M10-
- Left Rear Parking/Fog Lamp Bulb -M41-, Right Rear Parking/Fog Lamp Bulb -M42-
- 12 V, 21 W
- Bulb, Replacing. Refer to INNER BULB SOCKET, REMOVING AND INSTALLING, REAR LID TAIL LAMP, AVANT .
- Back-Up Lamp Bulb
- Left Back-Up Lamp Bulb -M16-
- Right Back-Up Lamp Bulb -M17-
- 12 V, 16 W (W16W)
- Bulb, Replacing. Refer to INNER BULB SOCKET, REMOVING AND INSTALLING, REAR LID TAIL LAMP, AVANT .
- Bolt
- 3.5 Nm
