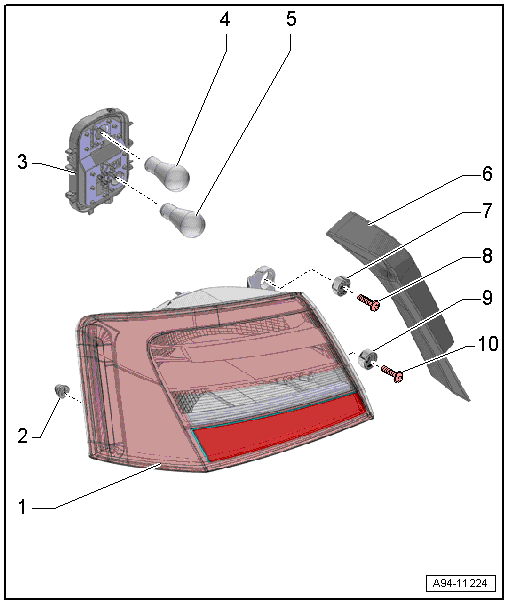

Overview - Body Tail Lamps, Sedan
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Tail Lamp
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING, SEDAN .
- Clip Nut
- Bulb Socket
- Removing and installing. Refer to BULB SOCKET, REMOVING AND INSTALLING, TAIL LAMP, SEDAN .
- Brake and Tail Lamp Bulb 2
- Left Brake/Tail Lamp Bulb 2 -M58-, Right Brake/Tail Lamp Bulb 2 -M59-
- 12 V, 21 W
- Bulb, Replacing. Refer to BULB SOCKET, REMOVING AND INSTALLING, TAIL LAMP, SEDAN .
- Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-, Right Rear Turn Signal Bulb -M8-
- 12 V, 21 W
- Bulb, Replacing. Refer to BULB SOCKET, REMOVING AND INSTALLING, TAIL LAMP, SEDAN .
- Cover
- For the outer tail lamp
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING, SEDAN .
- Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, SEDAN .
- Screw
- 3.5 Nm
- Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, SEDAN .
- Screw
- 3.5 Nm
