Overview - Body Tail Lamps, Led Tail Lamps, AVANT
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

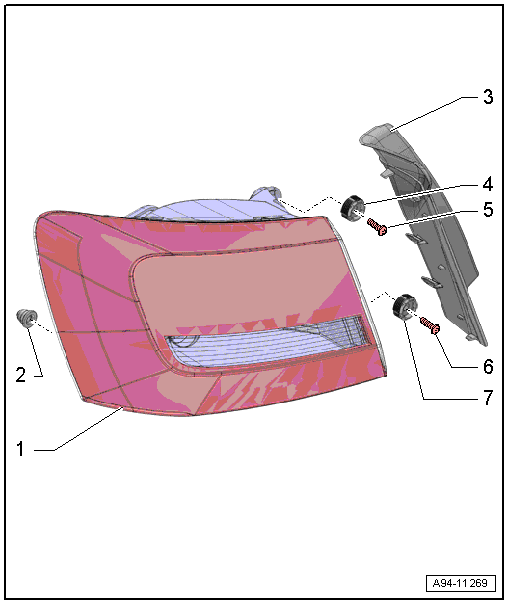

- Outer Tail Lamps
- LED tail lamps have LED bulbs and are integrated in the tail lamps. It is not possible to replace the LEDs. The entire tail lamp must be replaced.
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING, AVANT .
- Clip Nut
- Cover
- For the outer tail lamp
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING, AVANT .
- Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, AVANT .
- Screw
- 3.5 Nm
- Screw
- 3.5 Nm
- Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, AVANT .
