Overview - Body Tail Lamps, AVANT

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

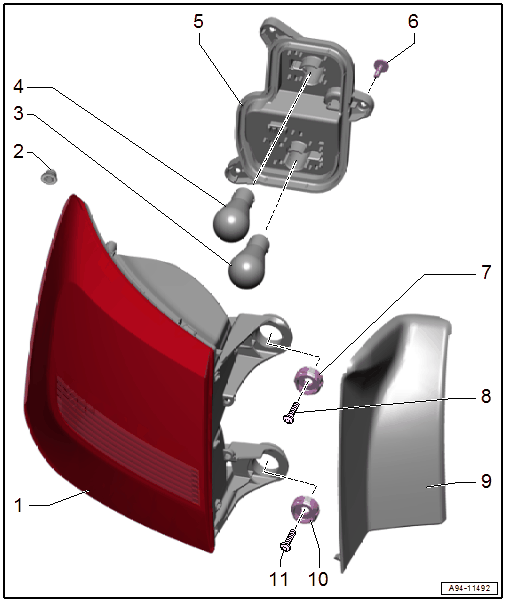

Fig 1: Body Tail Lamps, Avant Exploded View

Courtesy of AUDI OF AMERICA, LLC

Outer Tail Lamps
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING, AVANT .
Clip Nut
Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-, Right Rear Turn Signal Bulb -M8-
- 12 V, 21 W
- Bulb, Replacing. Refer to BULB SOCKET, REMOVING AND INSTALLING, AVANT .
Brake and Tail Lamp Bulb
- Left Brake/Tail Lamp Bulb -M21-, Right Brake/Tail Lamp Bulb -M22-
- 12 V, 21 W
- Bulb, Replacing. Refer to BULB SOCKET, REMOVING AND INSTALLING, AVANT .
Bulb Socket
- Removing and installing. Refer to BULB SOCKET, REMOVING AND INSTALLING, AVANT .
Screw
- 1.7 Nm
- Quantity: 3
Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, AVANT .
Screw
- 3.5 Nm
Cover
- For the outer tail lamp
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING, AVANT .
Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, AVANT .
Screw
- 3.5 Nm
