Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .
-- Loosen the rear seat belt guide from the body. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .

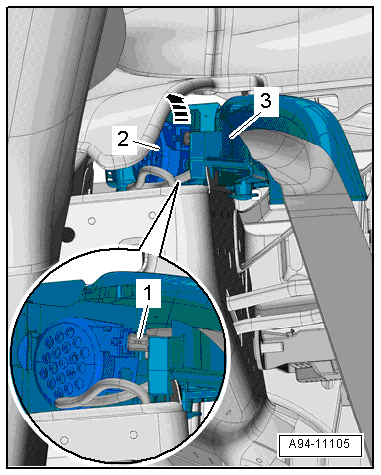

-- Remove the rear parking aid warning buzzer -2- from the mount inside the seat belt guide -3- in direction of -arrow-.
-- Disconnect the connector -1-.
