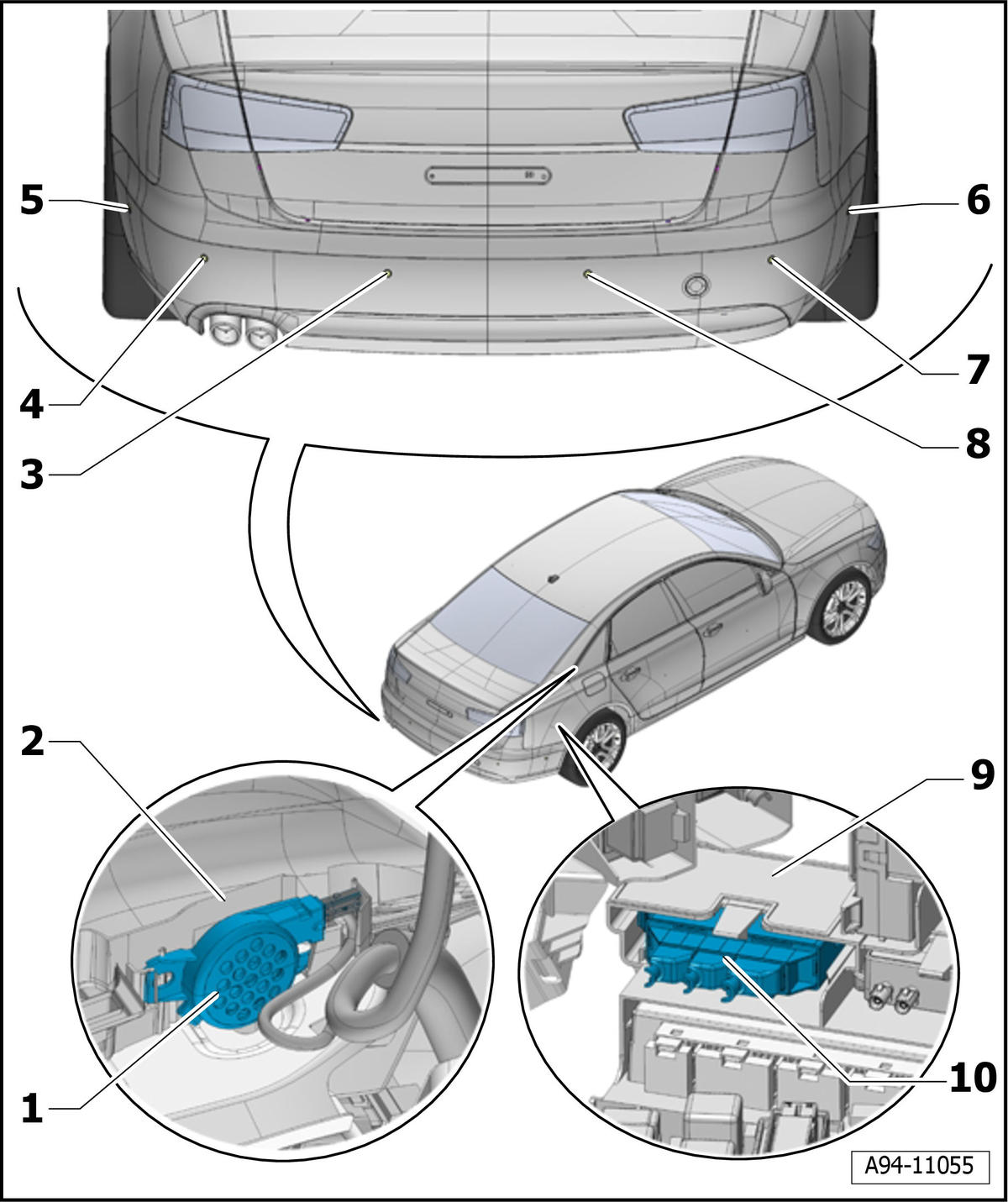

Overview - Rear Parking Aid
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Parking Aid Warning Buzzer -H15-
- Removing and installing. Refer to Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING .
- Rear Seat Belt Guide
- With mount for the Rear Parking Aid Warning Buzzer -H15-
- Left Rear Center Parking Aid Sensor -G204-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Rear Parking Aid Sensor -G203-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Rear Parallel Parking Assistance Sensor -G716-
- Overview. Refer to OVERVIEW - PARALLEL PARKING ASSIST .
- Right Rear Parallel Parking Assistance Sensor -G717-
- Overview. Refer to OVERVIEW - PARALLEL PARKING ASSIST .
- Right Rear Parking Aid Sensor -G206-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Rear Center Parking Aid Sensor -G205-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Lower Frame
- For the control modules
- Parking Aid Control Module -J446-
Vehicles through MY 2014
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
Vehicles from MY 2015
- Integrated in the Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
