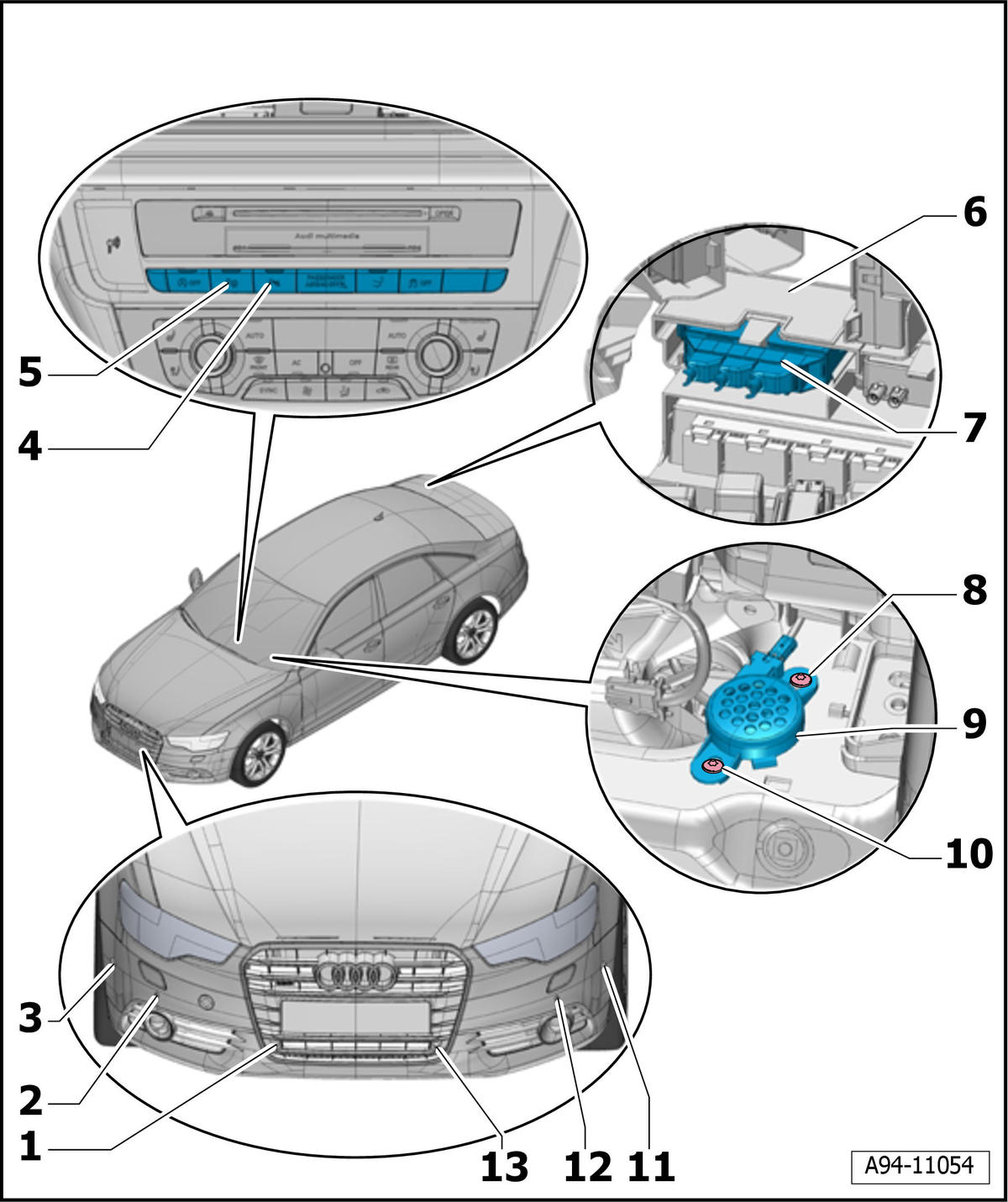

Overview - Front Parking Aid
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Right Front Center Parking Aid Sensor -G253-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Front Parking Aid Sensor -G252-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Front Parallel Parking Assistance Sensor -G569-
- Overview. Refer to OVERVIEW - PARALLEL PARKING ASSIST .
- Parking Aid Button -E266-
- Only for 8-channel parking aid
- Removing and installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Parallel Parking Assistance Button -E581-
- Overview. Refer to OVERVIEW - PARALLEL PARKING ASSIST .
- Lower Frame
- For the control modules
- Parking Aid Control Module -J446-
Vehicles through MY 2014
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
Vehicles from MY 2015
- Integrated in the Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
- Expanding Clip
- Front Parking Aid Warning Buzzer -H22-
- Only for 8-channel parking aid
- Removing and installing. Refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING .
- Expanding Clip
- Left Front Parallel Parking Assistance Sensor -G568-
- Overview. Refer to OVERVIEW - PARALLEL PARKING ASSIST .
- Left Front Parking Aid Sensor -G255-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Front Center Parking Aid Sensor -G254-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
