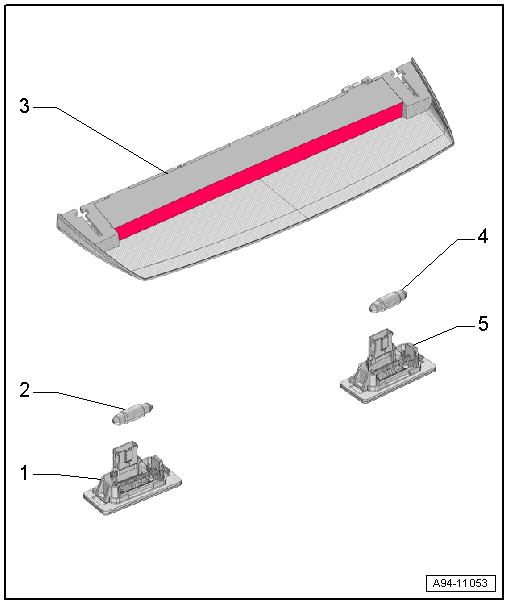

Component Location Overview - License Plate Lamp, Sedan
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Left License Plate Lamp Holder
- There are different versions. Refer to the Parts information.
- Removing and installing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
- Left License Plate Lamp -X4-
- Dependent on the version
- 12 V, 5 W
- Bulb, Replacing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
- High-Mounted Brake Lamp
- With High-Mounted Brake Lamp Bulb -M25-
- Right License Plate Lamp -X5-
- Dependent on the version
- 12 V, 5 W
- Bulb, Replacing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
- Right License Plate Lamp Holder
- There are different versions. Refer to the Parts information.
- Removing and installing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
