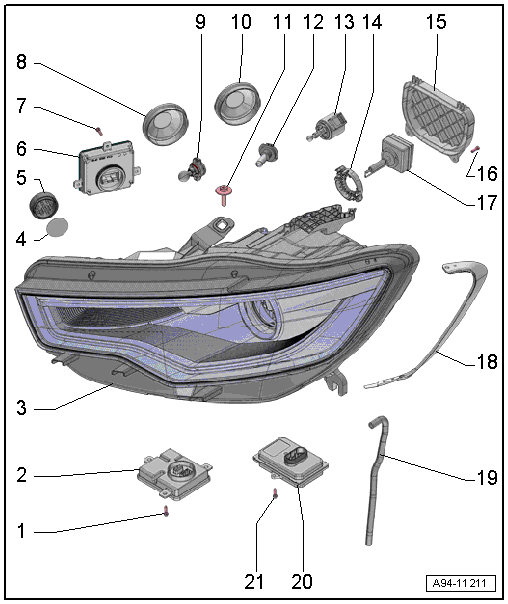

Overview - Headlamps, Hid Headlamp Through My 2014
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 1.5 Nm
- Quantity: 3
- HID Headlamp Control Module
- Left HID Headlamp Control Module -J343-, Right HID Headlamp Control Module -J344-
- Removing and installing. Refer to LEFT/RIGHT HID HEADLAMP CONTROL MODULE -J343- / -J344-, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Headlamp Housing
- USA: The front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
- Removing and installing. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING, HID HEADLAMP AND LED HEADLAMP THROUGH MY 2014 .
- Filter Membrane
- Removing and installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING, HALOGEN HEADLAMP AND HID HEADLAMP THROUGH MY 2014 .
- Ventilation
- For the headlamp housing
- Daytime Running Lamp and Position Lamp Control Module
- Left Daytime Running Lamp and Position Lamp Control Module -J860-, Right Daytime Running Lamp and Position Lamp Control Module -J861-
- Removing and installing. Refer to LEFT/RIGHT DAYTIME RUNNING LAMP AND POSITION LAMP CONTROL MODULE -J860- / -J861-, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 1.5 Nm
- Quantity: 3
- Housing Cover
- Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-, Right Front Turn Signal Bulb -M7-
- 12 V, 24 W
- Bulb, Replacing. Refer to LEFT/RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING, HID HEADLAMPS THROUGH MY 2014 .
- Housing Cover
- Bolt
- 4.5 Nm
- Bulb
- 12 V, 55 W (H7)
- Bulb, Replacing. Refer to LEFT/RIGHT STATIONARY CORNERING LAMP -M51- / -M52-, LEFT/RIGHT CORNERING LAMP BULB -L148- / -L149-, REMOVING AND INSTALLING, THROUGH MY 2014 .
Headlamp without adaptive cornering lamp
- Left Stationary Cornering Lamp -M51-, Right Stationary Cornering Lamp -M52-
Headlamp with adaptive cornering lamp
- Left Stationary Cornering Lamp -M51-, Right Stationary Cornering Lamp -M52-
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HID HEADLAMPS THROUGH MY 2014 .
- Adapter Ring
- For HID headlamp bulb
- Housing Cover
- Bolt
- 1.5 Nm
- Quantity: 2
- HID Headlamp Bulb
- With integrated ignition coil
- Left HID Headlamp Bulb -L13-, Right HID Headlamp Bulb -L14-
- 42 V, 35 W (D3S)
- Bulb, Replacing. Refer to LEFT/RIGHT HID HEADLAMP BULB -L13- / -L14-, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Sealing Frame
- Removing and installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Breather Hose
- For the headlamp housing
- Headlamp Power Output Module
- Only for vehicles with cornering lamps
- Left Headlamp Power Output Module -J667- /Right Headlamp Power Output Module -J668-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP POWER OUTPUT MODULE -J667- / -J668-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 3
