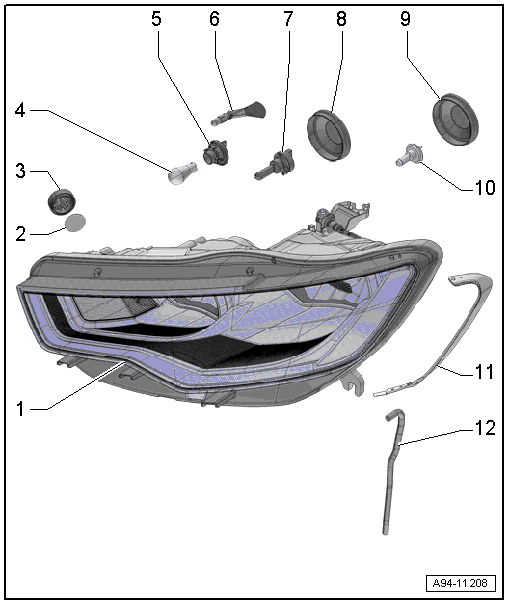

Overview - Headlamps, Halogen Headlamps
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamp Housing
- USA: The front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
- Removing and installing. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING, HALOGEN HEADLAMP .
- Filter Membrane
- Removing and installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING, HALOGEN HEADLAMP AND HID HEADLAMP THROUGH MY 2014 .
- Ventilation
- For the headlamp housing
- Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-, Right Front Turn Signal Bulb -M7-
- 12 V, 21 W (WY21W)
- Bulb, Replacing. Refer to LEFT/RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS .
- Socket
- For the front turn signal lamp
- Position Lamp Bulb
- Left Position Lamp Bulb -M1-, Right Position Lamp Bulb -M3-
- 12 V, 5 W (W5W)
- Bulb, Replacing. Refer to LEFT/RIGHT POSITION LAMP BULB -M1- / -M3-, REMOVING AND INSTALLING .
- Daytime Running Lamp Bulb/High Beam Headlamp Bulb
- Left Daytime Running Lamp Bulb -L174-, Right Daytime Running Lamp Bulb -L175-
- Left High Beam Headlamp Bulb -M30-, Right High Beam Headlamp Bulb -M32-
- 12 V, 15/55 W (H15)
- Bulb, Replacing. Refer to LEFT/RIGHT DAYTIME RUNNING LAMP BULB -L174- / -L175-, LEFT/RIGHT HIGH BEAM HEADLAMP BULB -M30- / -M32-, REMOVING AND INSTALLING, HALOGEN HEADLAMP .
- Housing Cover
- Housing Cover
- Low Beam Headlamp Bulb
- Left Low Beam Headlamp Bulb -M29-, Right Low Beam Headlamp Bulb -M31-
- 12 V, 55 W (H7)
- Bulb, Replacing. Refer to LOW BEAM HEADLAMP BULB, REMOVING AND INSTALLING .
- Sealing Frame
- Removing and installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Breather Hose
- For the headlamp housing
