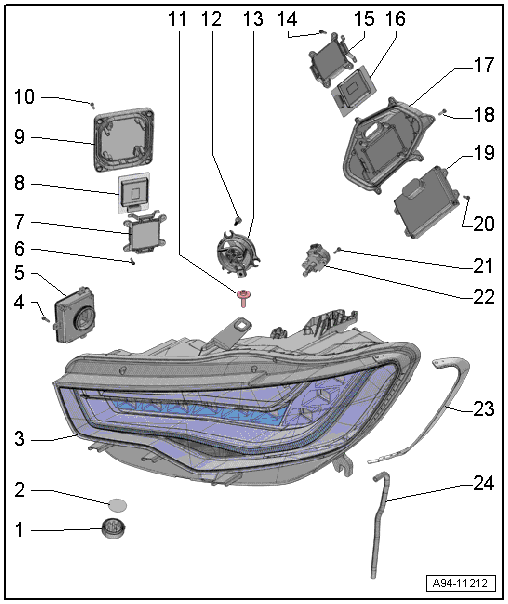

Overview - Headlamp, Led Headlamp Through My 2014
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Ventilation
- For the headlamp housing
- Filter Membrane
- Removing and installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING, LED HEADLAMP THROUGH MY 2014 .
- Headlamp Housing
- USA: The front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
- Removing and installing. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING, HID HEADLAMP AND LED HEADLAMP THROUGH MY 2014 .
- Bolt
- 1.5 Nm
- Quantity: 3
- LED Headlamp Power Output Module 2
- For daytime running lamp/position lamp, turn signal
- Left LED Headlamp Power Output Module 2 -A32-, Right LED Headlamp Power Output Module 2 -A28-
- Removing and installing. Refer to RIGHT/LEFT LED HEADLAMP POWER OUTPUT MODULE 2 -A28- / -A32-, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 1.5 Nm
- Quantity: 4
- Frame
- For securing the power output module
- LED Headlamp Power Output Module 3
- For the static cornering lamp
- Left LED Headlamp Power Output Module 3 -A33-, Right LED Headlamp Power Output Module 3 -A29-
- Removing and installing. Refer to LEFT/RIGHT LED HEADLAMP POWER OUTPUT MODULE 3 -A29- / - A33-, REMOVING AND INSTALLING .
- Housing Cover
- Bolt
- 1.5 Nm
- Quantity: 4
- Bolt
- 4.5 Nm
- Bolt
- 1 Nm
- Quantity: 3
- Headlamp Fan
- Left Headlamp Fan -V407-, Right Headlamp Fan -V408-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP FAN -V407- / -V408-, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 1.5 Nm
- Quantity: 3
- Frame
- For securing the power output module
- Power Output Module 4 for LED Headlamps
- For turn signal 2
- Country
- Left LED Headlamp Power Output Module 4 -A34-, Right LED Headlamp Power Output Module 4 -A30-
- Removing and installing. Refer to LEFT/RIGHT LED HEADLAMP POWER OUTPUT MODULE 4 -A34- / -A30-, REMOVING AND INSTALLING .
- Housing Cover
- Bolt
- 1.5 Nm
- Quantity: 6
- LED Headlamp Power Output Module 1
- For the headlamp electronics
- Left LED Headlamp Power Output Module 1 -A31-, Right LED Headlamp Power Output Module 1 -A27-
- Removing and installing. Refer to RIGHT/LEFT LED HEADLAMP POWER OUTPUT MODULE 1 -A27- / -A31-, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 1.5 Nm
- Quantity: 3
- Bolt
- 1.4 Nm
- Quantity: 2
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, LED HEADLAMPS THROUGH MY 2014 .
- Sealing Frame
- Removing and installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Breather Hose
- For the headlamp housing
