Overview - Headlamp, Led Headlamp Repair Kit, From My 2015

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

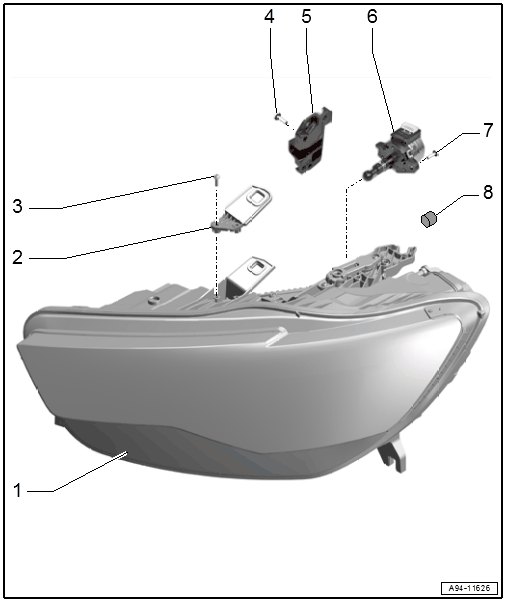

Fig 1: Headlamp Range Control Positioning Motor, Headlamp Housing Bracket Exploded View

Courtesy of AUDI OF AMERICA, LLC

Headlamp Housing
Headlamp Housing Upper Bracket
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING .
Bolt
- 1.8 Nm
- Quantity: 2
Bolt
- 1.8 Nm
- Quantity: 2
Bracket
- For headlamp beam adjustment motor
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, LED HEADLAMPS FROM MY 2015 .
Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, LED HEADLAMPS FROM MY 2015 .
Bolt
- 1.4 Nm
- Quantity: 2
Grommet
- The headlamp housing must be opened to replace the adjustment motor
- A grommet can be ordered to seal the assembly opening. Refer to the Parts information.
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, LED HEADLAMPS FROM MY 2015 .
