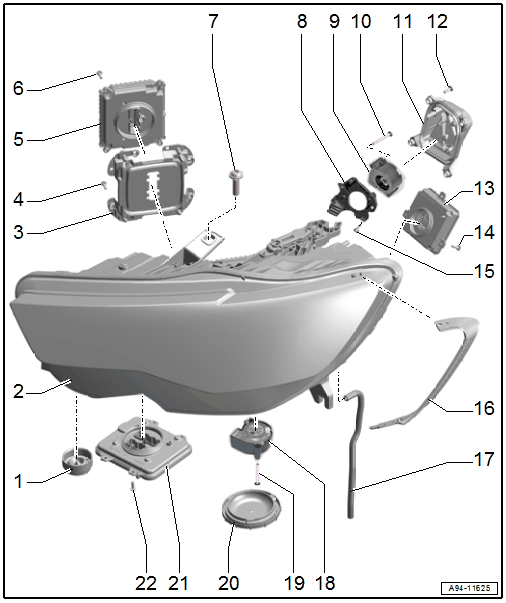

Overview - Headlamp, Led Headlamp From My 2015
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Filter Membrane
- Removing and installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING, HID HEADLAMP AND LED HEADLAMP FROM MY 2015 .
- Headlamp Housing
- USA: The front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
- Removing and installing. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING, HID HEADLAMP AND LED HEADLAMP FROM MY 2015 .
- Mount
- For the LED Headlamp Power Output Module 1
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, LED HEADLAMPS FROM MY 2015 .
- Bolt
- 1.5 Nm
- Quantity: 8
- LED Headlamp Power Output Module 1
- For the headlamp electronics
- Left LED Headlamp Power Output Module 1 -A31-, Right LED Headlamp Power Output Module 1 -A27-
- Removing and installing. Refer to RIGHT/LEFT LED HEADLAMP POWER OUTPUT MODULE 1 -A27- / -A31-, REMOVING AND INSTALLING, VEHICLES FROM MY 2015 .
- Bolt
- 1.5 Nm
- Quantity: 4
- Bolt
- 4.5 Nm
- Mount
- For headlamp fan
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP FAN -V407- / -V408-, REMOVING AND INSTALLING, VEHICLES FROM MY 2015 .
- Headlamp Fan
- Left Headlamp Fan -V407-, Right Headlamp Fan -V408-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP FAN -V407- / -V408-, REMOVING AND INSTALLING, VEHICLES FROM MY 2015 .
- Bolt
- 1.5 Nm
- Housing Cover
- Bolt
- 1.5 Nm
- Quantity: 4
- LED Headlamp Power Output Module 2
- For daytime running lamp/position lamp, turn signal
- Left LED Headlamp Power Output Module 2 -A32-, Right LED Headlamp Power Output Module 2 -A28-
- Removing and installing. Refer to RIGHT/LEFT LED HEADLAMP POWER OUTPUT MODULE 2 -A28- / -A32-, REMOVING AND INSTALLING, VEHICLES FROM MY 2015 .
- Bolt
- 1.5 Nm
- Quantity: 3
- Bolt
- 1.5 Nm
- Quantity: 2
- Sealing Frame
- Removing and installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Breather Hose
- For the headlamp housing
- Headlamp Fan 2
- Left Headlamp Fan 2 -V463-, Right Headlamp Fan 2 -V464-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP FAN 2 -V463- / -V464-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
- Housing Cover
- Matrix Headlamp Power Output Module
- For Audi Matrix LED headlamp
- Left Matrix Headlamp Power Output Module -A44-, Right Matrix Headlamp Power Output Module -A45-
- Removing and installing. Refer to LEFT/RIGHT MATRIX HEADLAMP POWER OUTPUT MODULE -A44- / -A45-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 4
