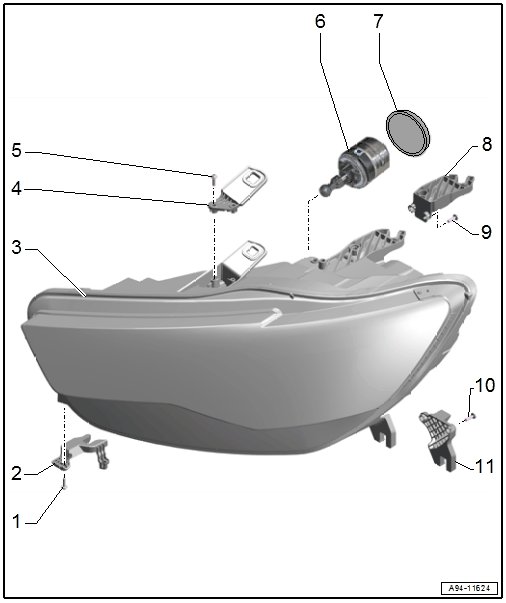

Overview - Headlamp, Hid Headlamp Repair Kit, From My 2015
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 1.8 Nm
- Quantity: 2
- Headlamp Housing Inner Bracket
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, HID HEADLAMP .
- Headlamp Housing
- Headlamp Housing Upper Bracket
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, HID HEADLAMP .
- Bolt
- 1.8 Nm
- Quantity: 2
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2015 .
- Headlamp Beam Adjustment Motor Housing Cover
- The headlamp housing must be cut open to replace the adjustment motor
- A housing cover can be ordered to seal the assembly opening. Refer to the Parts information.
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2015 .
- Headlamp Housing Upper Bracket
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, HID HEADLAMP .
- Bolt
- 1.8 Nm
- Quantity: 2
- Bolt
- 1.8 Nm
- Quantity: 2
- Headlamp Housing Lower Bracket
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, HID HEADLAMP .
