Low Beam Headlamp Bulb, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Depending on the date of manufacture, a bolt may be installed instead of the expanding clip.

The front area in the wheel housing liner must be loosened on vehicles without a cap. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

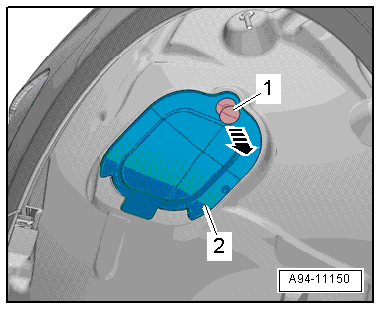

-- Loosen the expanding clip -1- and disengage the cap -2- from the front wheel housing liner -arrow-.

Courtesy of AUDI OF AMERICA, LLC

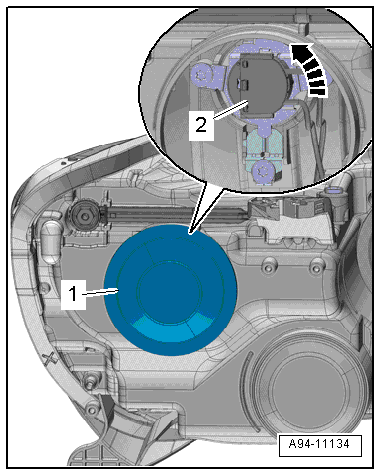

-- Remove the housing cover -1- from the headlamp housing.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the bulb socket -2- in direction of -arrow- and remove it.

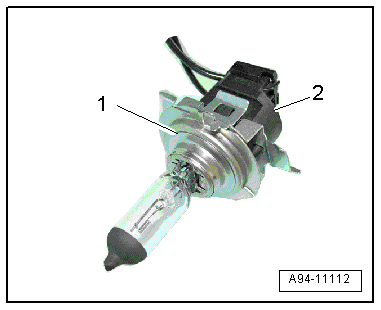

-- Remove the bulb -1- from the bulb socket -2-.

Courtesy of AUDI OF AMERICA, LLC
