Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- On the right: remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING[For engine(s) CPNB] or AIR FILTER HOUSING, REMOVING AND INSTALLING[For engine(s) CTGE, CEUC] or AIR FILTER HOUSING, REMOVING AND INSTALLING [For engine(s) CREC, CREH] .

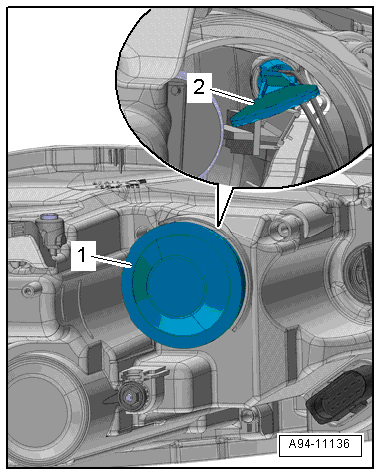

-- Remove the housing cover -1- from the headlamp housing.
-- Remove the bulb socket -2- from the housing.
-- Remove the bulb from the bulb socket.
