Left/Right Headlamp Power Output Module -J667- / -J668-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch to position "0".
-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.
-- Do not flash the headlights (flash-to-pass).
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

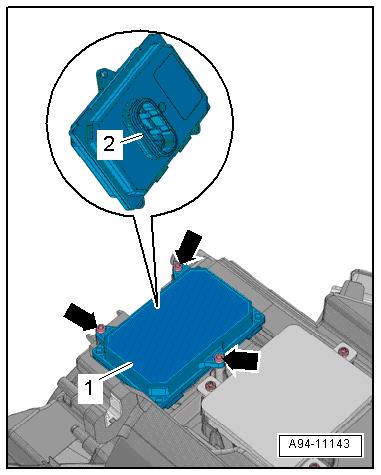

-- Remove the bolts -arrows-.
-- Remove the headlamp power output module -1-.
