Fog Lamp, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air intake grille. Refer to ATTACHMENTS, REMOVING AND INSTALLING .

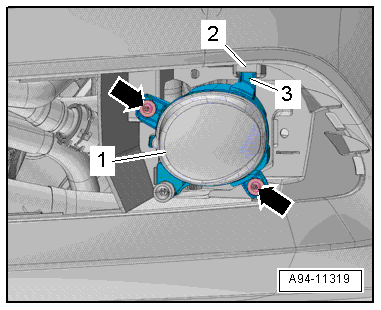

-- Remove the screws -arrows-.

GWWA94-11319Courtesy of AUDI OF AMERICA, LLC

-- Remove the guide -3- from the mount -2- to remove the fog lamps -1-.

-- Disconnect the connector.
