Signature Lighting, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air intake grille. Refer to BUMPER COVER, REMOVING AND INSTALLING .

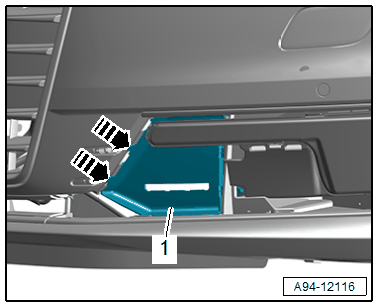

-- Release the retainers in direction of -arrows-.
-- Disengage the cover -1- from the signature lighting and remove.
-- Remove the wheel housing liner and wheel spoiler. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

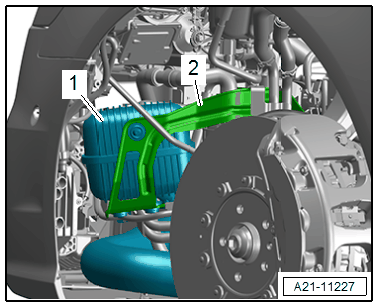

-- Left side: disengage the resonator -1- from the bracket -2- and push to the side.
-- Right side: loosen the horn. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
-- Right side: free up the wiring harness.

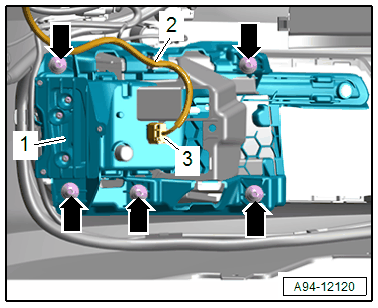

-- Remove the screws -arrows-.
-- Disconnect the connector -3- and free up the wiring harness -2-.
-- Remove the signature lighting -1- rearward.
