Overview - Seat Heating Element, Standard Seat/Sport Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

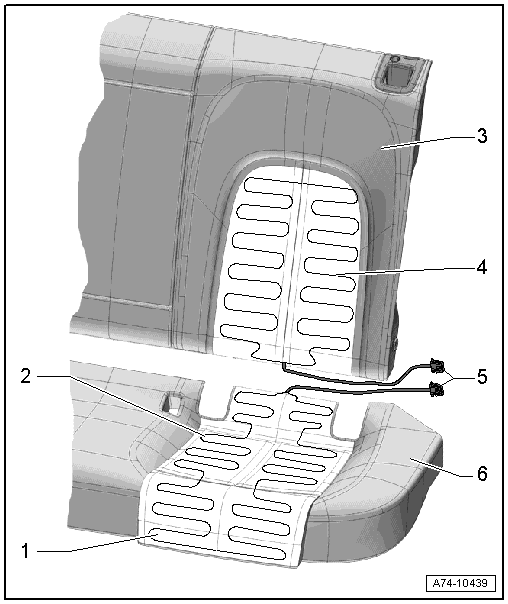

The illustration shows a vehicle with foldable rear seat back rests.
- Heating Element
- For leg rest
- Removing and installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- Allocation. Refer to the Parts information.
- Left Rear Bench Seat Heating Element -Z10-
- Front passenger side: Right Rear Bench Seat Heating Element -Z12-
- Removing and installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- Allocation. Refer to the Parts information.
- Backrest Cushion
- Allocation. Refer to the Parts information.
- Left Rear Backrest Heating Element -Z11-
- Front passenger side: Right Rear Backrest Heating Element -Z13-
- Removing and installing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- Allocation. Refer to the Parts information.
- Wire
- Seat Cushion
- Allocation. Refer to the Parts information.
