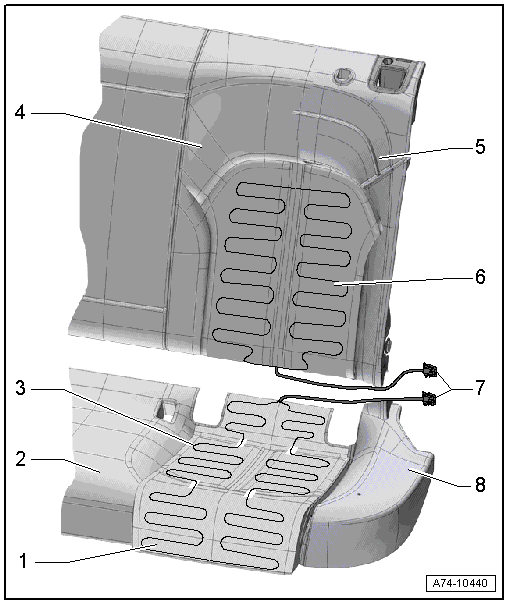

Overview - Seat Heating Element, Multi-Contour Seat
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Heating Element
- For leg rest
- Heating element sewn into seat cover; if faulty, replace the seat cover. Refer to COVER AND CUSHION, SEPARATING .
- Seat Cover
- Left Rear Bench Seat Heating Element -Z10-
- Front passenger side: Right Rear Bench Seat Heating Element -Z12-
- Heating element sewn into seat cover; if faulty, replace the seat cover. Refer to COVER AND CUSHION, SEPARATING .
- Backrest Cover
- Backrest Cushion
- Allocation. Refer to the Parts information.
- Left Rear Backrest Heating Element -Z11-
- Front passenger side: Right Rear Backrest Heating Element -Z13-
- Heating element sewn into backrest cover; if faulty, replace backrest cover. Refer to COVER AND CUSHION, SEPARATING .
- Wire
- Seat Cushion
- Allocation. Refer to the Parts information.
