Overview - Seat Heating Element, Market-Specific

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

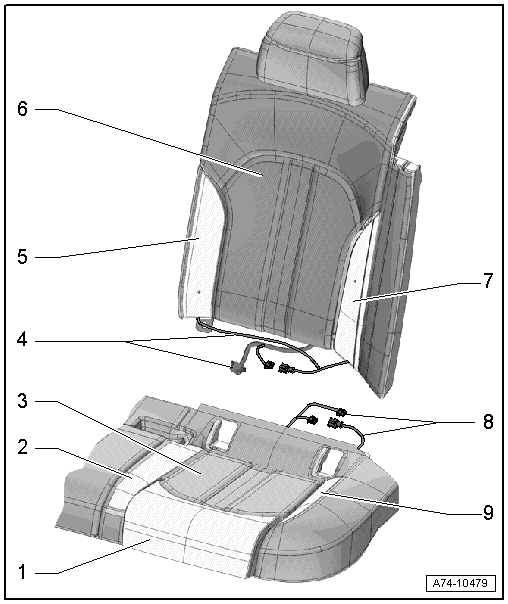

Fig 1: Seat Heating Element, Market-Specific Exploded View

Courtesy of AUDI OF AMERICA, LLC

Heating Element
- For leg rest
- Removing and installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
Driver Side Rear Seat Right Bolster Heating Element -Z85-
- Front passenger side: Passenger Side Rear Seat Right Bolster Heating Element -Z89-
- With the seat cushion glued on
- Removing and installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
Left Rear Bench Seat Heating Element -Z10-
- Front passenger side: Right Rear Bench Seat Heating Element -Z12-
- Heating element sewn into seat cover; if faulty, replace the seat cover. Refer to COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
Wire
Driver Side Rear Seat Right Backrest Bolster Heating Element -Z87-
- Front passenger side: Passenger Side Rear Seat Right Backrest Bolster Heating Element -Z91-
- With the seat cushion glued on
- Removing and installing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
Left Rear Backrest Heating Element -Z11-
- Front passenger side: Right Rear Backrest Heating Element -Z13-
- Heating element sewn into backrest cover; if faulty, replace backrest cover. Refer to COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
Driver Side Rear Seat Left Backrest Bolster Heating Element -Z86-
- Front passenger side: Passenger Side Rear Seat Left Backrest Bolster Heating Element -Z90-
- With the seat cushion glued on
- Removing and installing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
Wire
Driver Side Rear Seat Left Bolster Heating Element -Z84-
- Front passenger side: Passenger Side Rear Seat Left Bolster Heating Element -Z88-
- With the seat cushion glued on
- Removing and installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .
