Overview - Cover And Cushion, Multi-Contour Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

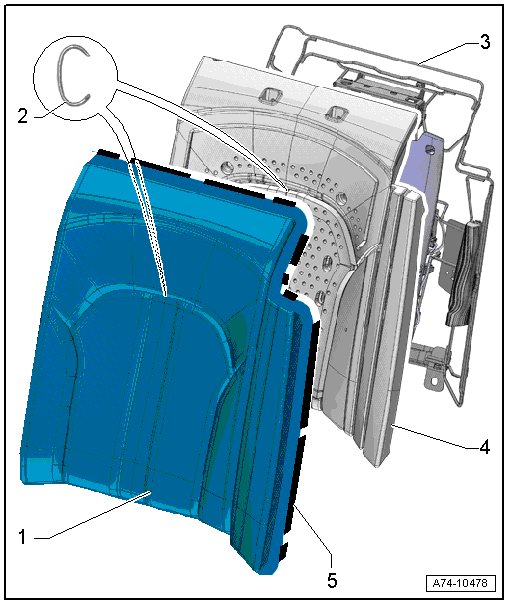

Fig 1: Cover And Cushion, Multi-Contour Seat Exploded View
GWWA74-10478Courtesy of AUDI OF AMERICA, LLC
  1. Backrest Cover
  2. Cushion Clip
    • For attachment of backrest cover to backrest cushion
    • Replace
    • Install at the same location with Upholstery Clip Pliers :VAG1634  .
  3. Backrest Frame
  4. Backrest Cushion
  5. Molding
    • Sewn into backrest cover
    • For engaging the backrest cover in the backrest seat frame
