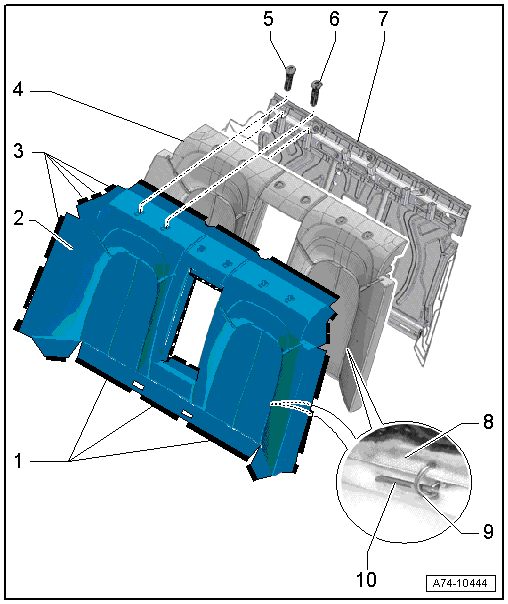

Overview - Cover And Cushion, Fixed Rear Seat Backrest
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Clamping Strip
- Sewn into backrest cover
- For engaging the backrest cover in the backrest seat frame
- Backrest Cover
- Removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
- Backrest cover and cushion, separating and assembling. Refer to COVER AND CUSHION, SEPARATING .
- Molding
- Sewn into backrest cover
- For engaging the backrest cover in the backrest seat frame
- Backrest Cushion
- Removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
- Backrest cover and cushion, separating and assembling. Refer to COVER AND CUSHION, SEPARATING .
- Headrest Guide
- With locking spring
- Quantity: 3
- Always installed on the rear seat backrest on the right side
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, STANDARD/SPORT SEAT/SUPER SPORT SEAT .
- Headrest Guide
- With the headrest height adjustment button
- Quantity: 3
- Always installed on the rear seat backrest on the left side
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, STANDARD/SPORT SEAT/SUPER SPORT SEAT .
- Backrest Frame
- Contour Wire
- Pushed into the pocket of the backrest cover
- For attachment of backrest cover to backrest cushion
- Cushion Clip
- For attachment of backrest cover to backrest cushion
- Replace
- Install at the same location with Upholstery Clip Pliers :VAG1634 .
- Wire
- Embedded in the foam of the backrest cushion
- For attachment of backrest cover to backrest cushion
