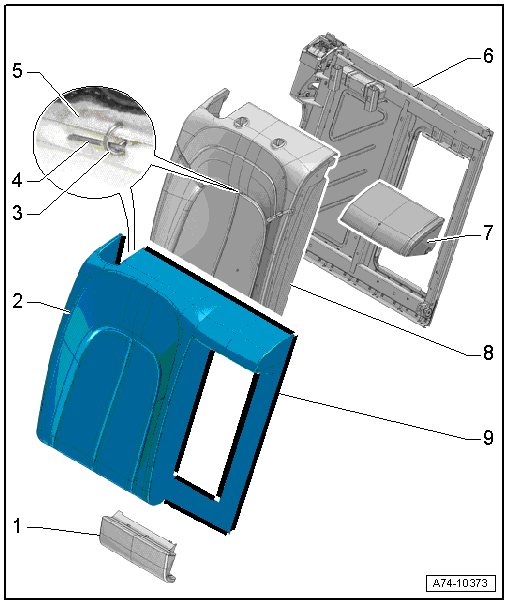

Overview - Cover And Cushion (Backrest With Pass-Through)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Lower Center Cushion
- Removing and installing. Refer to LOWER CENTER CUSHION, REMOVING AND INSTALLING .
- Engage the cushion to the pass-through door and press on it until it clicks into place
- Backrest Cover
- Backrest cover and cushion, removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, DIVIDED REAR SEAT BACKREST .
- Backrest cover and cushion, separating and assembling. Refer to COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
- Make sure there are no folds after installing
- Cushion Clip
- For attachment of backrest cover to backrest cushion
- Replace
- Install at the same location with Upholstery Clip Pliers :VAG1634 .
- Wire
- Embedded in the foam of the backrest cushion
- For attachment of backrest cover to backrest cushion
- Contour Wire
- Pushed into the pocket of the backrest cover
- For attachment of backrest cover to backrest cushion
- Backrest Frame
- Removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, DIVIDED REAR SEAT BACKREST .
- Upper Center Cushion
- Removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, DIVIDED REAR SEAT BACKREST .
- Backrest Cushion
- Backrest cover and cushion, removing and installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, DIVIDED REAR SEAT BACKREST .
- Backrest cover and cushion, separating and assembling. Refer to COVER AND CUSHION, SEPARATING .
- Allocation. Refer to the Parts information.
- Clamping Strip
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
