Multi-Contour Seat Rear Seat Backrest:

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

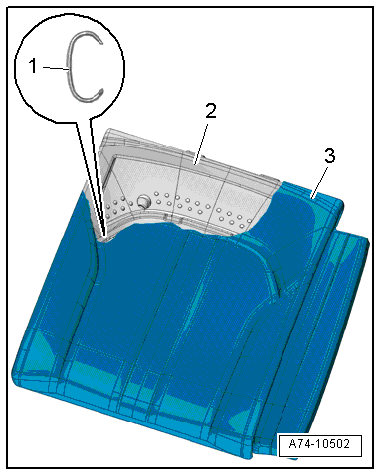

GWWA74-10502Courtesy of AUDI OF AMERICA, LLC

-- Pull off the backrest cover -3- from the backrest cushion -2- as far as possible and cut the upholstery clips -1- using pliers.

-- Vehicles equipped with backrest cover with heating element sewn in: carefully loosen the heating element from the bonding and remove it.
